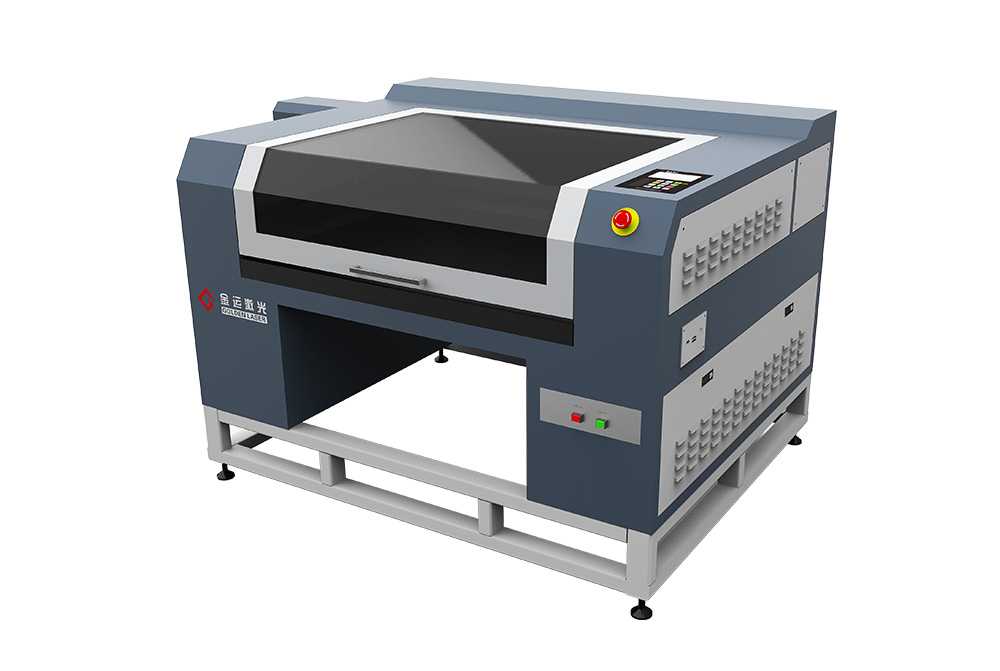

Model No.: ZDJG-9050 / MZDJG-160100LD

CCD Camera Laser Cutter for Woven Label, Embroidery Patches

This laser cutter is specially developed for the alignment cutting of all kinds of textile label products such as woven labels, embroidery labels and leather labels. The laser head is equipped with a CCD camera to realize automatic recognition and cutting of graphics.

Main Features

Camera recognition range 120mm×150mm

Software with deformation correction compensation

Automatic recognition software, multiple recognition modes options

Support multi-template cutting, big labels cutting (exceed camera recognition range)

Technical specifications of the laser cutting machine

Model

ZDJG-9050

ZDJG-160100LD

Laser type

CO2 DC glass laser tube

Laser power

65W, 80W, 110W, 130W, 150W

Working table

Honeycomb working table (Fixed / Shuttle)

Conveyor working table

Working area

900mm×500mm

1600mm×1000mm

Moving system

Step motor

Cooling system

Constant temperature water chiller

Supported graphics formats

PLT, DXF, AI, BMP, DST

Power supply

AC220V±5%  50 / 60Hz

Options

Projector, red dot positioning system

Application of the CCD camera laser cutter

Applicable material:

Suitable for all kinds of textile labels cutting, such as woven labels, embroidery labels, badges, emblems, leather labels, etc.

Applicable industries:

Clothing, shoes, bags, embroidery and fabric printing industry.

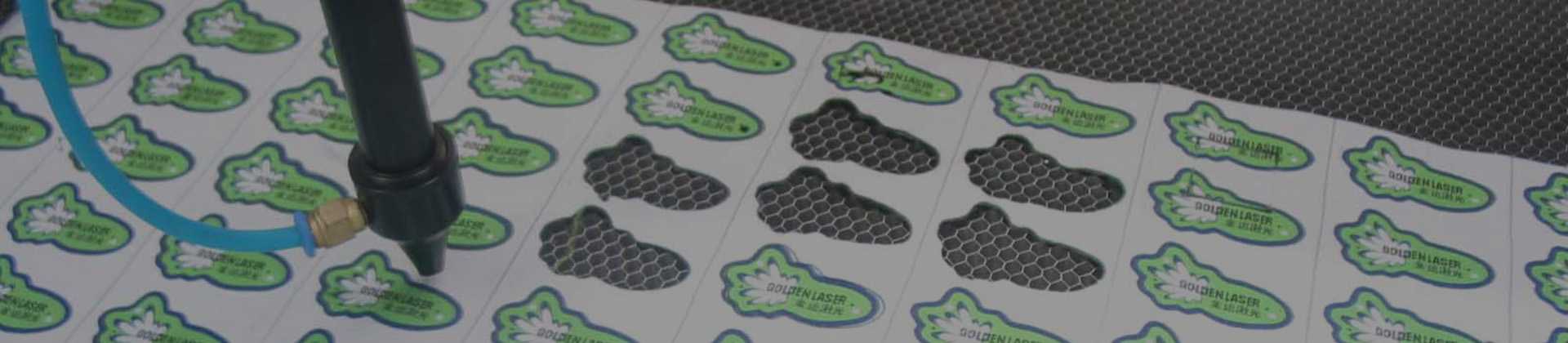

label laser cutting
