GF1530 / GF1540 / GF1560 / GF2040 / GF2060

Open Type Fiber Laser Cutting Machine for Metal

Send email to us Download as PDF

GF series CNC laser cutting system is an economical metal flat sheet cutting machine. It is suitable for cutting all kinds of metal sheets to produce high quality parts of various shapes, sizes and thicknesses. By utilizing its fiber laser cutting technology, users can easily make prototypes and mass production.

This fiber laser cutter is open structure with single platform.

700W, 1000W, 1500W, 2000W, 2500W laser power options.

1500mm × 3000mm, 1500mm × 4000mm, 1500mm × 6000mm, 2000mm × 4000mm, 2000mm × 6000mm cutting table sizes optional.

More Details

Features of the Flat Sheet CNC Fiber Laser Cutting System

Open type structure makes loading and unloading easily

Single working table saves floor space

Drawer style tray makes easy collecting and cleaning for the scraps and small parts

Gantry double driving structure with high damping bed is of good rigidity, high speed and high acceleration

The world-class fiber laser resonator and electronic components ensure the machine superior stability

Technical Specifications of the Fiber Laser Cutting Machine

Models	GF1530 / GF1540 / GF1560 / GF2040 / GF2060
Cutting area	1500mm×3000mm / 1500mm×4000mm / 1500mm×6000mm / 2000mm×4000mm / 2000mm×6000mm
Laser source	nLight / IPG / Raycus fiber laser resonator
Laser source power	700W / 1000W / 1500W / 2000W / 2500W
Positioning accuracy	±0.03mm/m
Repeat positioning accuracy	±0.02mm
Maximum positioning speed	60m/min
Acceleration	0.6g
Cutting speed	Depend on material, laser source power
Electric power supply	AC380V 50/60Hz

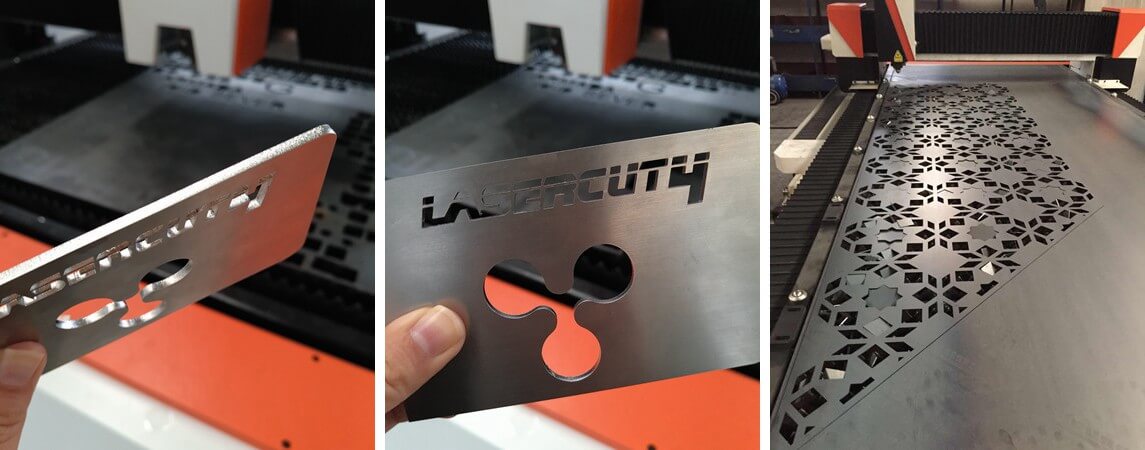

Flat Sheet Metal Fiber CNC Laser Cutting Machine at Customers’ Site

Application of Fiber CNC Laser Cutting Machine

Applicable Material

Carbon steel, mild steel, stainless steel, galvanized steel, alloy, titanium, aluminum, brass, copper and other metal sheets.

Applicable Industry

Sheet metal fabrication, machinery, electronics, electrical cabinet, kitchenware, elevator panel, hardware tools, metal enclosure, advertising signs, furniture, metal doors and railings, decoration, medical instruments, automotive parts, lamps, jewelry, glasses and other metal cutting fields.
