› Automatic and continuous processing
› Unique overlength nesting function
› Vacuum conveyor system, feeding accuracy is up to 1mm

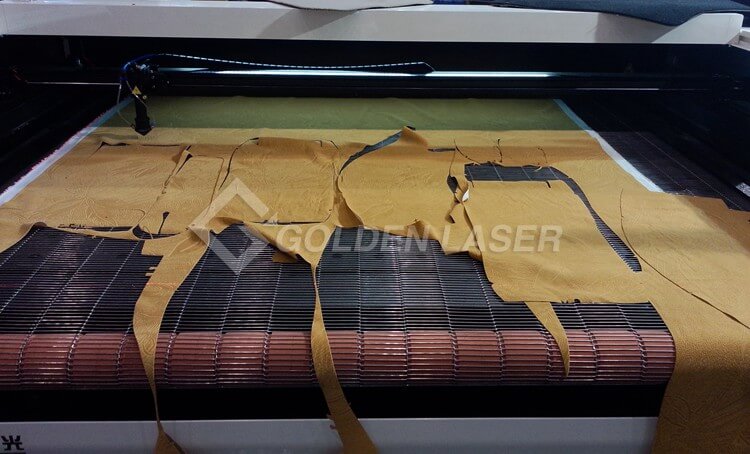

› Multiple types of conveyor belts are available: stainless steel mesh belts, flat flex belts and iron wire mesh belts
Technical specifications of the CO2 laser cutting machine
| Model No. |
MJG-160100LD |
MJGHY-160100LD II |
| Laser head |
Single head |
Double head |
| Laser type | CO2 DC glass laser | |
| Laser power | 80 watt ~ 150 watt | |
| Working area | 1600mm×1000mm (63”×39.3”) | |
| Working accuracy | ±0.1mm | |
| Working table | Vacuum conveyor working table | |
| Motion system | Step motor | |
| Cooling system | Constant temperature water chiller | |
| Supported graphics formats | PLT, DXF, AI, BMP, DST, etc. | |
| Power supply | AC220V±5% 50 / 60Hz | |
Other table sizes are available. E.g. Models JG-14090LD (single head) and MJGHY-14090LD II (double head), working area is 1400mm × 900mm (55” × 35.4”)
Options
√ Extended table
√ Automatic feeder
√ CCD camera
√ Projector
√ Red dot positioning
√ CO2 RF metal laser
Application industries & materials of the CO2 laser cutter machine
Garment Industry
Garment accessories cutting (woven labels, appliqué embroidery, etc.), collar and sleeves cutting, clothing decoration accessories cutting, garment sample making.
Shoe industry
Suitable for 2D, 3D shoe upper, warp knitted mesh upper, 4D printed shoe upper.
Applicable materials: leather, composite materials, fabrics, microfiber, etc.
Bags industry
It can be used for engraving, cutting and punching on synthetic leather and artificial leather.
Automotive interior industry
Suitable for car seat covers, car seat cushions, car sunshade, tail box mats, anti-side kick mats, large surrounded mats, steering wheel covers, explosion-proof membranes, etc.
Applicable materials: PU, microfiber, air mesh, sponge leather, sponge+cloth+leather composite leather, wool, cloth, PVC, cardboard, kraft paper, etc.
