Model No.: ZDJMCZJJG-12060SG

SuperLAB | X-Y Gantry & Galvo Laser Machine with CCD Camera

SuperLAB is a CO2 laser machining center for non-metal that combines laser marking, engraving and cutting functions. It not only can switch freely among multiple functions, but also has the function of vision positioning, one key correction and auto focus. It is a good helper for research & development and prototyping.

SuperLAB uses world-class optical components and high-quality optical modes to expand the processing range with high-speed and high-precision gantry. The galvanometric marking and X-Y gantry cutting share a set of laser source and can be switched at any time. A machine can fit a variety of requirements..

Core Advantages

R&D and prototyping integration

Seamless on-the-fly marking, engraving and perforating for entire format

Multi-functions convert freely in one machine

Galvo automatically calibration with the camera

Auto focus system for different thickness materials processing

Main Configuration

Imported CO2 RF metal laser tube

GoldenCAM high-precision vision recognition system

High-speed gear and rack drive system

Technical Specifications of the Gantry & Galvo Laser Machine with CCD Camera

Model No. ZDJMCZJJG-12060SG
Laser type CO2 RF metal laser tube
Laser power 60W, 150W, 300W, 600W
Working area 1200mm×600mm (47.2”×23.6”)
Galvo system 3D dynamic system, galvanometer SCANLAB laser head, scanning area 450mm×450mm
Working table Automatic up-down Zn-Fe honeycomb working table
Vision system CCD camera mark point recognize cutting
Motion system Servo motor
Cooling system Constant temperature water chiller
Power supply AC220V±5% 50Hz/60Hz
Machine dimension 3.4m×2.08m×1.89m (133.8”×81.8”×74.4”)

Application of SuperLAB - Gantry & Galvo CO2 Laser with Camera

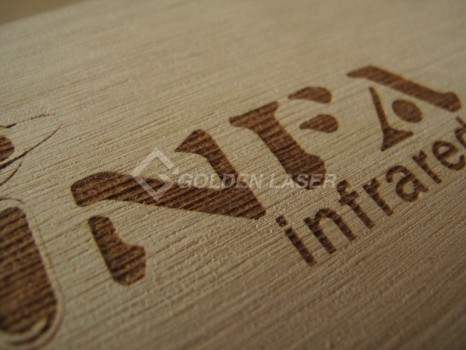

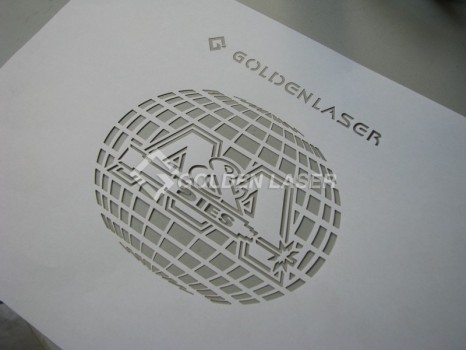

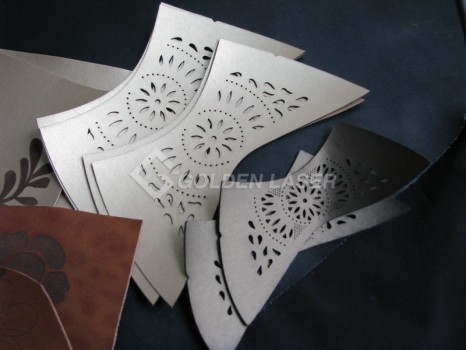

SuperLAB is a breakthrough in the field of laser system. It is widely used in laser processing of various non-metallic materials such as reflective stickers, lettering films, invitation greeting cards, printed cardboard, digital print labels, twill letters, numbers, logo patches, leather shoes & bags, garment fabrics perforation, wood, acrylic, etc.
