Model No.: XBQNZDJG-160100LD

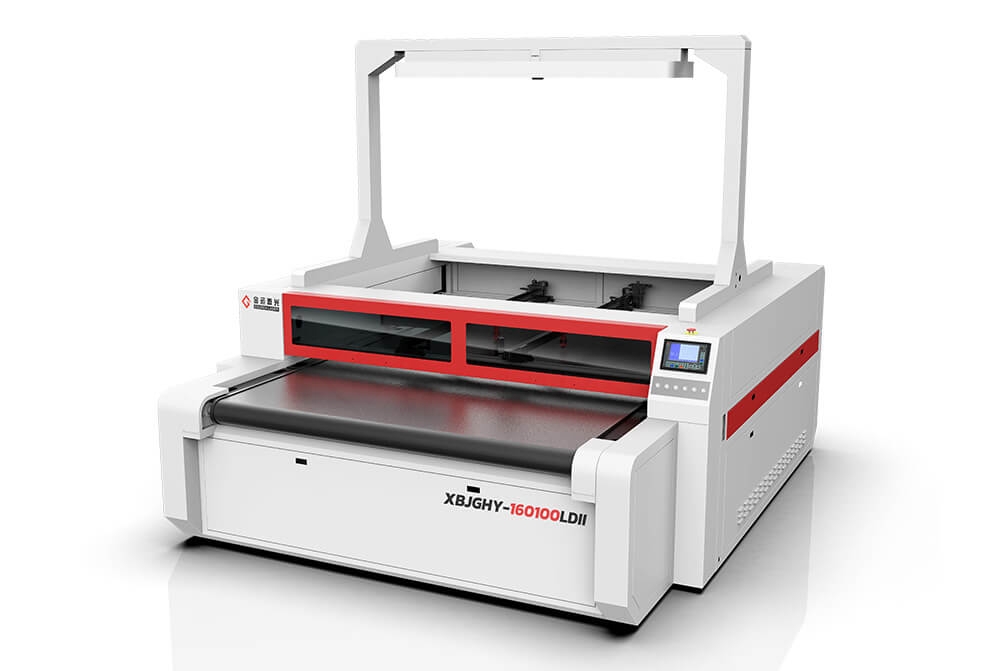

Independent Two Heads Laser Cutting Machine with Camera

The laser cutting system is an upgraded version of the smart vision laser cutter, which combines a cantilever double head asynchronous cutting system with a smart vision camera positioning system.

It is further optimized based on the demand of the graphics processing and mixed nesting, and solves the problem of low cutting efficiency caused by mixed nesting graphics.

Asynchronous double heads cutting system

Mixed nesting function available.

The double heads can cut different patterns asynchronously, and the software can assign the nested job to each head, highly improving processing efficiency and saving materials.

Smart Vision System

Through the high-precision camera to image the entire processed material at one time, the Smart Vision System supports direct extraction of graphic contours for automatic processing, or utilizing registration marks to find the right position and cut according to original graphics.

The system also supports real-time modification during processing without being limited by multiple graphics.

It is the best solution for processing digital printing industry.

Technical Parameters of the Laser Cutting Machine

Model No. XBQNZDJG-160100LD
Laser Type CO2 glass laser tube
Laser Power 80W / 130W / 150W
Cutting Area 1600mm × 1000mm (63in × 39.3in)
Working Table Conveyor working table
Cooling System Constant temperature water chiller
Software Goldenlaser Smart Vision System
Graphic format supported AI, BMP, PLT, DXF, DST
Power Supply AC220V ± 5% 50/60Hz

Other bed sizes are available.

E.g. 1600mm×1200mm (63”×47.2”), 1800mm×1000mm (70.8” ×39.3”)

Application of the Laser Cutter

Process materials

Textile, polyester fabric, spandex, vinyl, leather, plastic, paper and other non-metal materials.

Application industry

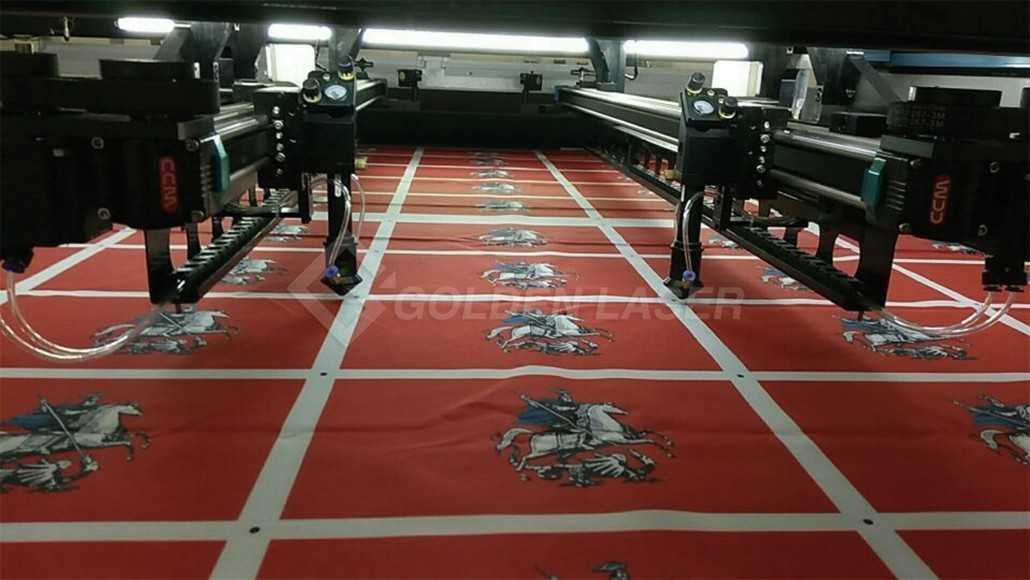

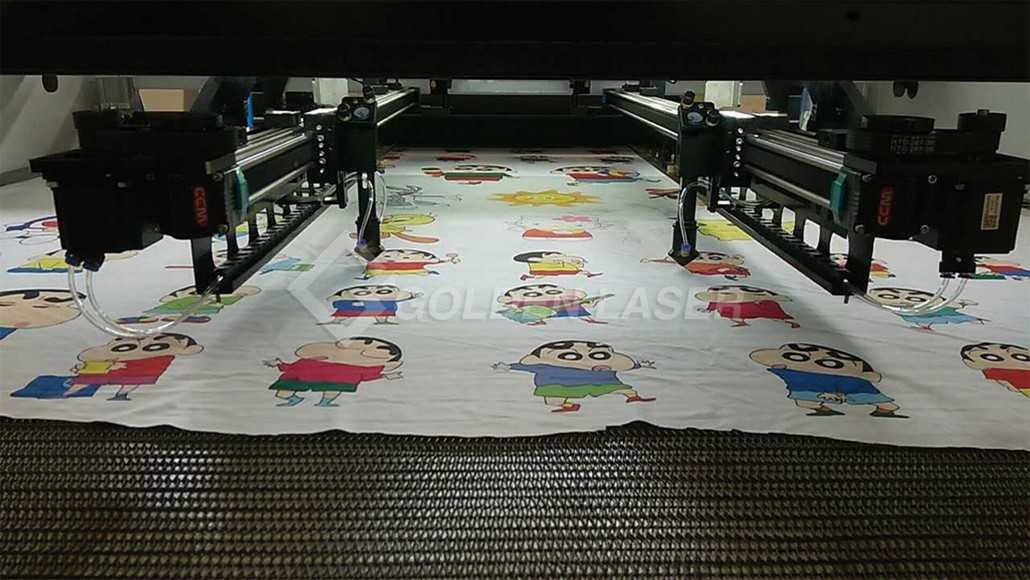

Sportswear, swimwear, printed clothing, printed shoe uppers, printed graphics, labels, patches, flags, toys, bags, etc.

Watch Smart Vision Independent Double Head Laser Cutter in Action!
